First and foremost, let’s delve into the term "rapid prototyping" or RP for short. It’s important to address this concept because it actually predates the advent of 3D printing and serves as the foundation for understanding how modern additive manufacturing evolved. Originally, RP was used to describe any method or technology aimed at accelerating the process of creating physical prototypes for products. This was a critical step in product development, as traditional prototyping methods—such as machining, hand-sculpting, or molding—were often labor-intensive, expensive, and could take weeks or even months to complete. RP emerged as a solution to streamline this process and allow designers and engineers to bring their ideas to life more efficiently. Before the rise of 3D printing, the term rapid prototyping referred to any method designed to speed up the creation of physical prototypes, often relying on traditional techniques like CNC machining, hand-sculpting, or temporary molding. These methods, while faster than manual processes, still required significant time, effort, and resources. The goal was to streamline the product development cycle, allowing for quicker testing, iteration, and refinement.
The advent of 3D printing in the 1980s completely transformed the concept of rapid prototyping, redefining what was possible in terms of speed, precision, and complexity. Unlike subtractive manufacturing methods, where material is removed to create a design, 3D printing introduced additive manufacturing—a process that builds objects layer by layer directly from digital designs. This shift not only revolutionized the prototyping process but also paved the way for advancements in industries like jewelry, where intricate, highly customized designs are essential.
Today, 3D printing has become synonymous with rapid prototyping, enabling faster, more cost-effective, and more flexible approaches to design and production. Its influence continues to grow, merging innovation with traditional craftsmanship and reshaping industries worldwide.
Origins of the Term RP
-
Pre-1980s: Rapid prototyping referred to processes within traditional manufacturing that aimed to accelerate prototype creation. These included subtractive manufacturing methods, such as milling or CNC (computer numerical control) machining, where material was carved or drilled to shape a model.
-
Focus on Efficiency: The goal of rapid prototyping was to reduce the product development cycle, allowing engineers and designers to test and refine their ideas more quickly, ultimately shortening time-to-market.
How Rapid Prototyping Evolved
-
Before 3D printing, rapid prototyping methods relied on the precision of computer-controlled machinery. For example:
-
CNC Machining: This technique allowed manufacturers to quickly produce prototypes from metal, wood, or plastic. It was faster than manual methods but still required significant programming and setup time.
-
Injection Molding Prototyping: Early methods of rapid prototyping also included creating temporary molds to cast plastic prototypes in small quantities.
The Transition with 3D Printing
The introduction of 3D printing in the 1980s revolutionized the concept of rapid prototyping:
-
3D printing became the definitive rapid prototyping method because it allowed manufacturers to create prototypes directly from digital designs with little to no tooling or setup time.
-
Unlike CNC machining, which is subtractive (removing material to create a part), 3D printing is additive, building parts layer by layer. This process enabled much more complex designs and greater flexibility.
Why 3D Printing Redefined Rapid Prototyping
When technologies like stereolithography (SLA) (invented by Chuck Hull in 1984) and fused deposition modeling (FDM) emerged, they were branded as rapid prototyping tools because:
-
They drastically shortened the time required to produce prototypes.
-
They allowed for more iterative design processes, where multiple prototypes could be tested and refined in succession.
-
They expanded the range of materials and geometries that could be prototyped.
Rapid Prototyping Today
Today, rapid prototyping is almost synonymous with 3D printing. While subtractive manufacturing and other traditional methods are still used for certain applications, the term "rapid prototyping" now predominantly refers to additive manufacturing processes. These techniques have expanded beyond prototypes to include small-batch production, tooling, and even end-use parts.
In summary, rapid prototyping began as a term for any process that could accelerate traditional prototyping methods. With the advent of 3D printing, it transitioned into a revolutionary manufacturing paradigm, enabling faster, more cost-effective, and more flexible design and production processes.
The History and Evolution of 3D Printing in Jewelry
The first person to use 3D printing was Hideo Kodama of Japan, who in 1981 invented a rapid prototyping system that used photopolymers. He developed the basic concept of creating 3D objects layer by layer using UV light to cure layers of liquid polymer. However, Kodama’s system was not fully commercialized, and he is often an overlooked figure in the history of 3D printing.
The person widely recognized as the true pioneer of 3D printing however is Chuck Hull, who invented stereolithography (SLA)in 1984. Hull’s system used a laser to cure liquid resin into solid layers, forming 3D objects. He patented this process in 1986 and founded 3D Systems, which became one of the leading companies in the 3D printing industry. Hull also created the STL file format, which remains the standard for 3D printing design files today.
Key Timeline:
-
1981: Hideo Kodama develops a layer-by-layer prototyping system using photopolymers.
-
1984: Chuck Hull invents stereolithography (SLA), marking the foundation of modern 3D printing.
-
1986: Chuck Hull founds 3D Systems, producing the first commercial 3D printer, the SLA-1.
Chuck Hull's invention is what set 3D printing on its course to revolutionize industries like healthcare, aerospace, automotive, and jewelry. 1980s: The foundation of 3D printing was laid when Hideo Kodama developed a rapid prototyping system, followed by Charles Hull’s invention of stereolithography (SLA), the first true 3D printing technology.
-
1990s: Industries began adopting 3D printing, and jewelers started experimenting with prototyping intricate designs.
-
2000s: The introduction of resin-based technologies like SLA and digital light processing (DLP) allowed jewelers to create detailed wax models for casting.
-
2010s: Advances in precision, resin formulations, and accessibility made 3D printing a mainstream tool in jewelry production.
-
2020s: Direct metal 3D printing gained traction, enabling jewelers to bypass casting for certain designs and directly create pieces in gold, platinum, and other precious metals.
The Process of 3D Printing in Jewelry
3D printing in jewelry typically involves two main approaches: printing castable wax models or directly printing metal jewelry.
1. Printing Castable Wax Models
One of the most common applications of 3D printing in jewelry is creating castable wax models for the lost wax casting process:
-
Design: The jewelry design is created in computer-aided design (CAD) software and exported as an STL file for printing.
-
Wax Printing: A 3D printer (usually using SLA or DLP technology) produces the design in a specialized castable resin or wax.
-
Casting:
-
The wax model is encased in a plaster-like material called investment.
-
The investment is cured in a kiln, burning out the wax and leaving a hollow mold.
-
Molten metal is poured into the mold to create the final piece, which is then cleaned, polished, and finished.
This process is ideal for intricate, detailed designs and custom pieces, offering unparalleled precision.
2. Direct Metal 3D Printing
Direct metal 3D printing eliminates the need for casting altogether. Technologies like Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) are used to fuse powdered metals (e.g., gold, silver, titanium) layer by layer. While this method is more expensive, it allows for unique designs, such as lattice structures, that are impossible to achieve with traditional casting.

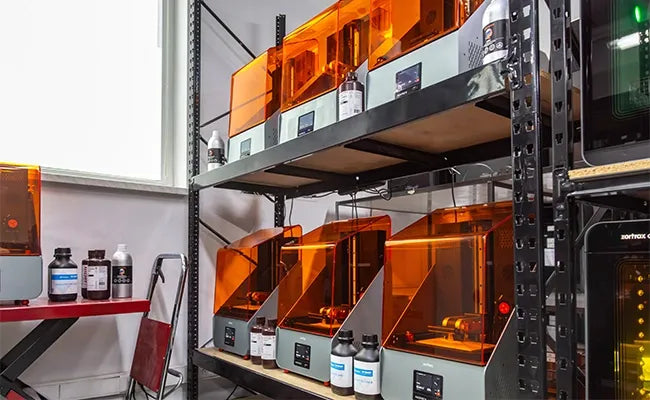

Print Farms and Their Role in Jewelry Making
In recent years, print farms have become an integral part of the jewelry-making process. These facilities house multiple 3D printers working simultaneously, enabling jewelers to:
-
Scale Production: Print farms can produce hundreds of wax models or metal components quickly, drastically reducing turnaround times for large orders.
-
Offer Mass Customization: Customers can submit unique designs, which are printed on demand and at scale.
-
Maintain Consistency: By automating production with 3D printers, jewelers achieve precise and uniform results across batches.
Print farms are particularly popular among large-scale manufacturers, custom jewelry service providers, and independent designers who outsource their printing needs. They represent the intersection of mass production and personalized craftsmanship.
Advantages of 3D Printing in Jewelry
-
Precision: Captures intricate details with incredible accuracy.
-
Customization: Allows easy modification of designs to create personalized jewelry.
-
Efficiency: Reduces production time compared to traditional methods.
-
Sustainability: Minimizes material waste, especially in metal 3D printing.
-
Accessibility: Empowers smaller designers to compete with large-scale manufacturers.
The Future of 3D Printing in Jewelry
As 3D printing technology continues to evolve, its role in jewelry making is set to expand:
-
Affordable Metal Printing: Innovations will likely make direct metal 3D printing more accessible for small-scale jewelers.
-
Eco-Friendly Materials: Biodegradable resins and sustainable casting practices are emerging trends.
-
Integration with AI and Blockchain: AI-powered design tools and blockchain technology for traceability will further enhance the industry.
-
Advancements in Print Farms: Larger and more efficient print farms will enable faster production and greater cost savings.
Conclusion
The evolution of rapid prototyping and the advent of 3D printing have revolutionized industries, with the jewelry sector being no exception. What began as a need to accelerate traditional prototyping methods has grown into a transformative technology capable of reshaping how products are designed, developed, and manufactured.
Rapid prototyping provided the foundation for this shift, enabling quicker iterations and more efficient workflows. With the introduction of 3D printing, the concept evolved further, offering unprecedented precision, customization, and versatility. The ability to print castable wax models, directly 3D print metals, and utilize print farms for scaled production has allowed jewelers to push creative boundaries while optimizing their processes.
Today, 3D printing in jewelry is not just a tool for rapid prototyping but a bridge between traditional craftsmanship and cutting-edge technology. It has opened doors to creating intricate designs, reducing waste, and meeting the demands of modern consumers for personalized and sustainable pieces. As 3D printing technology continues to advance, it will further empower artisans and manufacturers alike, ensuring that the fusion of innovation and artistry continues to thrive. This journey is far from over, with exciting possibilities on the horizon, solidifying 3D printing’s role as a cornerstone of modern manufacturing.
